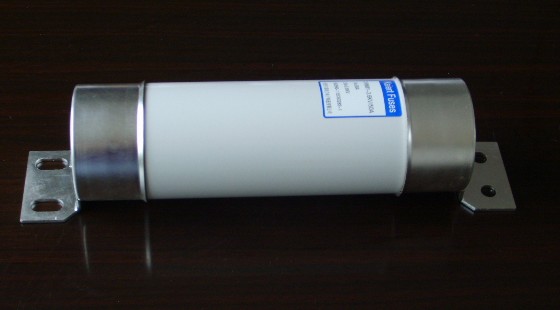

產品展示 >> 電容器保護 >> XRNCBM-5.5KV |
|
 |
Ratings 等級: Volts 電壓: 5.5KV AC ; Amps 電流 6.3~125A .Breaking Capacity 分斷能力: 50kA - 63kA.
產品可與負荷開關、真空接觸器等配套使用，廣泛應用于電力變壓器及其它電力設備的過載或短路保護
|
| |
| 額定電壓Rated voltage |
螺栓 Thread |
類別Class |
標準Standard |
AC 15.5 kV |
M12 |
后備保護Back up |
IEC60282-1、IEC60549 |
|
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
尺寸Length
L1(mm) |
尺寸Length
L2(mm) |
尺寸Length
L3(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
| XRNCBM1-5.5 |
6.3A |
30 384 21.6.3 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
10A |
30 384 21.10 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
16A |
30 384 21.16 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
20A |
30 384 21.20 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
25A |
30 384 21.25 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
31.5A |
30 384 21.31.5 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
40A |
30 384 21.40 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
50A |
30 384 21.50 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
63A |
30 384 21.63 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
80A |
30 384 21.80 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
100A |
30 384 21.100 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM1-5.5 |
125A |
30 384 21.125 |
254 |
315 |
290 |
Φ63.5 |
63KA |
|
| |
| 額定電壓Rated voltage |
螺栓 Thread |
類別Class |
標準Standard |
AC 5.5 kV |
M16 |
后備保護Back up |
IEC60282-1、IEC60549 |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
尺寸Length
L1(mm) |
尺寸Length
L2(mm) |
尺寸Length
L3(mm) |
尺寸Length
D(mm) |
分斷能力
Rated breaking Current |
| XRNCBM2-5.5 |
6.3A |
30 404 21.6.3 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
10A |
30 404 21.10 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
16A |
30 404 21.16 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
20A |
30 404 21.20 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
25A |
30 404 21.25 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
31.5A |
30 404 21.31.5 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
40A |
30 404 21.40 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
50A |
30 404 21.50 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
63A |
30 404 21.63 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
80A |
30 404 21.80 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
100A |
30 404 21.100 |
254 |
315 |
290 |
Φ63.5 |
63KA |
| XRNCBM2-5.5 |
125A |
30 404 21.125 |
254 |
315 |
290 |
Φ63.5 |
63KA |
|
| |

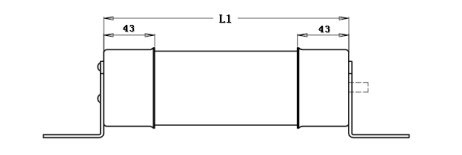

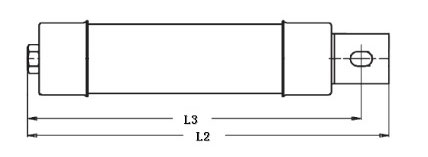

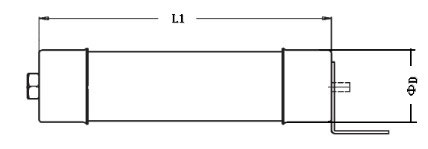

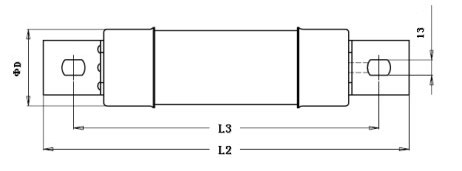

XRNCBM1、XRNCBM2—Dimensions 安裝尺寸 (mm):
|
 |
 |
| XRNCM1—Dimensions 安裝尺寸 (mm): |
 |
 |

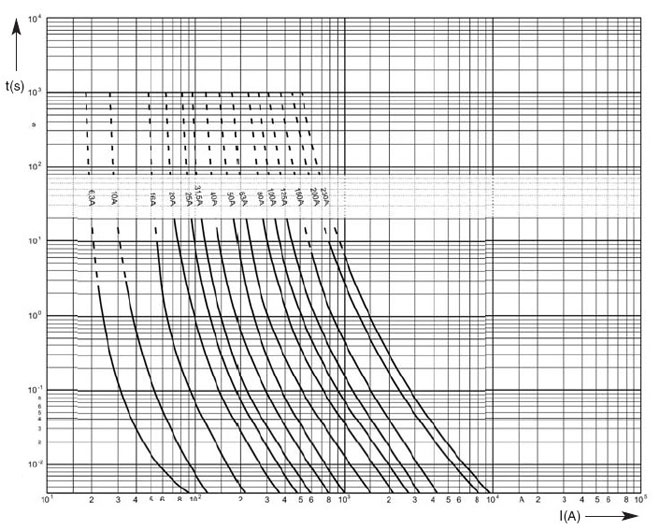

| Time Current Characteristics 時間---電流特性曲線: |
 |

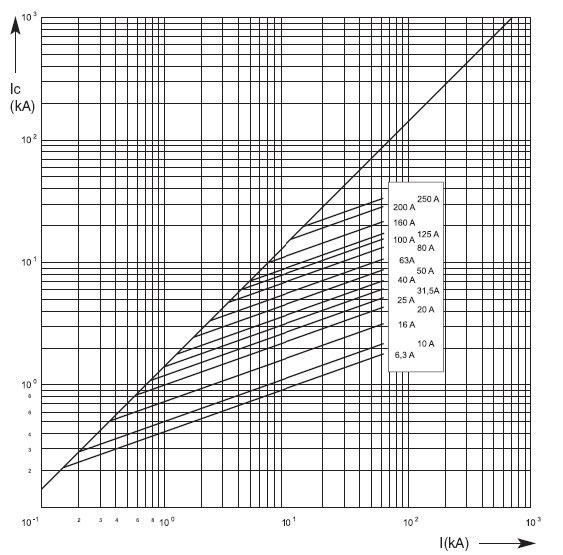

| CUT OFF Current Diagram截斷電流特性曲線： |
|
|
|
|
