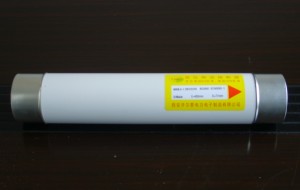

產品展示 >> 電容器保護 >> XRNCB-4.8KV |
|
 |
Ratings 等級: Volts 電壓: 4.8KV AC ; Amps 電流 6.3~250A .Breaking Capacity 分斷能力: 50kA - 63kA.
產品可與負荷開關、真空接觸器等配套使用，廣泛應用于電力變壓器及其它電力設備的過載或短路保護。
|
| |
| 額定電壓Rated voltage |
螺栓 Thread |
類別Class |
標準Standard |
AC 4.8 kV |
M12 |
后備保護Back up |
IEC60282-1、IEC60549 |
|
| |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
尺寸Length
E(mm) |
尺寸Length
D(mm) |
尺寸Length
L(mm) |
分斷能力
Rated breaking Current |
| XRNCB1-4.8 |
6.3A |
30 349 21.6.3 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
10A |
30 349 21.10 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
16A |
30 349 21.16 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
20A |
30 349 21.20 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
25A |
30 349 21.25 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
31.5A |
30 349 21.31.5 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
40A |
30 349 21.40 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
50A |
30 349 21.50 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
63A |
30 349 21.63 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
80A |
30 349 21.80 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
100A |
30 349 21.100 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB1-4.8 |
125A |
30 350 21.125 |
254 |
Φ76 |
273 |
63KA |
| XRNCB1-4.8 |
160A |
30 350 21.160 |
254 |
Φ76 |
273 |
63KA |
| XRNCB1-4.8 |
200A |
30 351 21.200 |
254 |
Φ76 |
378 |
63KA |
| XRNCB1-4.8 |
250A |
30 351 21.250 |
254 |
Φ76 |
378 |
63KA |
|
| |
| 額定電壓Rated voltage |
螺栓 Thread |
類別Class |
標準Standard |
AC 4.8 kV |
M16 |
后備保護Back up |
IEC60282-1、IEC60549 |
|
| |
開爾泰型號
Kaiert Type |
額定電流
Rated Current |
SIBA Type |
尺寸Length
E(mm) |
尺寸Length
D(mm) |
尺寸Length
L(mm) |
分斷能力
Rated breaking Current |
| XRNCB2-4.8 |
6.3A |
30 356 21.6.3 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
10A |
30 356 21.10 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
16A |
30 356 21.16 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
20A |
30 356 21.20 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
25A |
30 356 21.25 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
31.5A |
30 356 21.31.5 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
40A |
30 356 21.40 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
50A |
30 356 21.50 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
63A |
30 356 21.63 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
80A |
30 356 21.80 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
100A |
30 356 21.100 |
254 |
Φ63.5 |
273 |
63KA |
| XRNCB2-4.8 |
125A |
30 357 21.125 |
254 |
Φ76 |
273 |
63KA |
| XRNCB2-4.8 |
160A |
30 357 21.160 |
254 |
Φ76 |
273 |
63KA |
| XRNCB2-4.8 |
200A |
30 358 21.200 |
359 |
Φ76 |
378 |
63KA |
| XRNCB2-4.8 |
250A |
30 358 21.250 |
359 |
Φ76 |
378 |
63KA |
|
| |

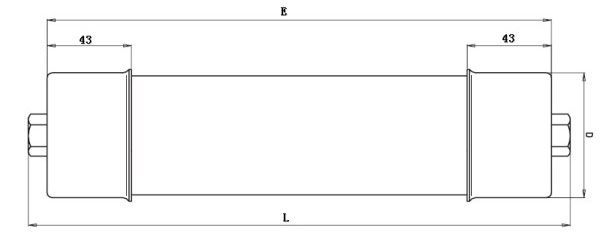

Dimensions 安裝尺寸 (mm): |
 |
| |

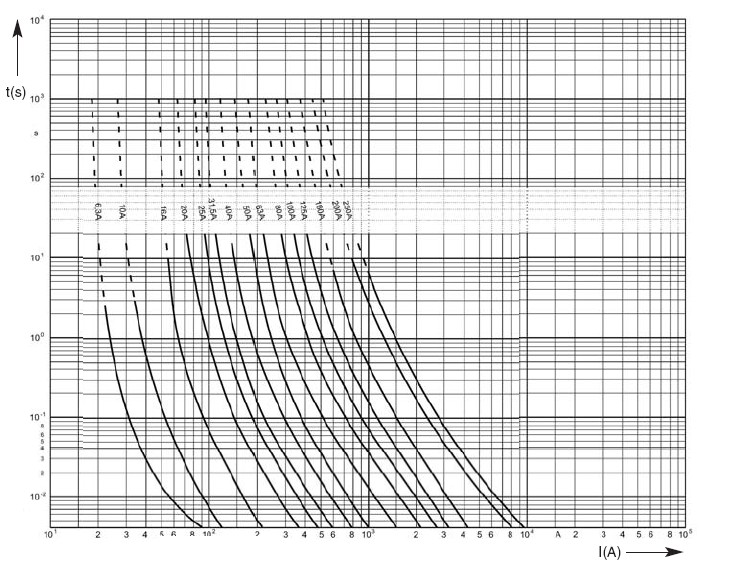

Time Current Characteristics 時間---電流特性曲線: |
 |
|
|
